Henry Lever Action Side Gate

Instruction Manual For All H012 Series Side Loading Gate Rifles

.44 Magnum /.44 Spl - H012G, H012GAW, H012GCC, H012GL, H012GR .45 Colt - H012GC, H012GCAW, H012GCCC, H012GCL, H012GCR .357 Magnum/.38 Spl - H012GM, H012GMAW, H012GMCC, H012GML, H012GMR, H012GMRCC, H012GRCC

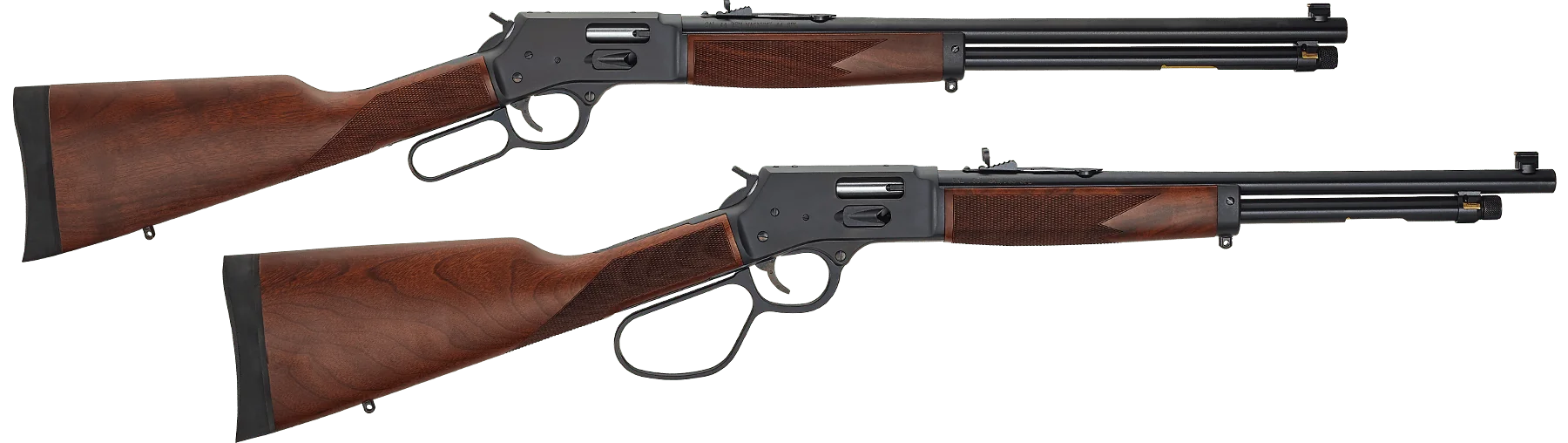

H012 Rifle Photo

WARNING: BEFORE USING FIREARM, READ AND FOLLOW THESE INSTRUCTIONS.If there is anything you do not understand, get help from someone qualified to teach the safe handling of firearms.

Show Table of Contents

The Henry Guarantee

We are confident that you’ll enjoy and be proud to own any of our Henry firearms, well known for their reliability, accuracy, handsome looks and smooth action.

Our goal has and always will be to manufacture a line of classic, well-crafted firearms that every enthusiast would find readily affordable.

We take great pride in manufacturing our shotguns in the United States, hence our corporate motto “Made in America, or Not Made at All”.

Thank you very much for spending your hard earned money to purchase a Henry. I certainly appreciate it and welcome you to the Henry family. As an owner of a Henry, you are backed by our lifetime warranty and my personal guarantee for 100% satisfaction. I will do what it takes to make certain you are happy with your purchase.

Sincerely,

Anthony Imperato
Henry Repeating Arms
Telephone: 201.858.4400

Simple Limited Lifetime Warranty

It is our promise to you that as long as you own your Henry firearm, it will be free from defects in material and workmanship from the manufacturer. If you have a problem with your Henry firearm, we will fix it at no charge to you. Henry Repeating Arms shall repair, send replacement parts or replace the firearm with a valid warranty claim. If a complete replacement is necessary, the original firearm will not be returned. Henry RAC will provide repairs or replacement at no charge, but will not offer cash, credit, or refund.

WE RESERVE THE RIGHT TO REFUSE SERVICE ON FIREARMS THAT HAVE BEEN ALTERED, ADDED TO, OR SUBSTANTIALLY CHANGED.

Removal of metal from the barrel, or modifications of the firing mechanism and/or operating parts, may lead to a refusal of service on such firearms. There will be a charge for parts and labor to return the firearm to original specifications.

DO NOT, UNDER ANY CIRCUMSTANCES, ALTER THE TRIGGER, “SAFETY” OR OTHER PARTS OF FIRING MECHANISM OF THIS OR ANY OTHER FIREARM. FAILURE TO OBEY THIS WARNING MAY RESULT IN INJURY OR DEATH.

NOTICE: Henry RAC shall not be responsible for injury, death, or damage to property resulting from either intentional or accidental discharge of this firearm, or from its function when used for purposes or subjected to treatment for which it is not designed.

Whether or not you are experienced in the safe handling of firearms, we urge you to read this entire instruction manual carefully. You must follow the safety instructions for your safety and the safety of others. Should you have any questions concerning the instructions in this manual, please call us at 201-858-4400.

WARNING: If you have little or no experience in the safe handling and operation of a firearm, we strongly urge you to take a firearms safety course from an NRA Certified Instructor or someone with equivalent qualifications before using this or any other firearm. You can contact the NRA Firearms Education and Safety Division at 703-267-1470 for the name of an instructor in your area, or contact your firearms dealer, law enforcement agency or local sportsman’s club for training.

General Gun Safety Handling

Apply the following safety rules in every situation, with any kind of firearm:

ALWAYS TREAT EVERY FIREARM AS IF IT IS LOADED AND WILL FIRE.  Do not take anyone’s word that the firearm is unloaded – always check for yourself. Never pass your firearm to another person until the cylinder or action is open and you visually check that it is unloaded. Keep your firearm unloaded and safely stored when not in use.

ALWAYS BE SURE OF YOUR TARGET AND WHAT IS BEYOND. A bullet could travel through or past your target for up to 1½ miles.  Always be sure your backstop is adequate to stop and contain bullets before beginning target practice so that you do not hit anything outside the range shooting area.  If in doubt, don’t shoot! Do not fire randomly into the sky.

NEVER SHOOT ACROSS A HIGHWAY OR ANOTHER ROADWAY.

ALWAYS POINT YOUR FIREARM IN A SAFE DIRECTION.  NEVER point a firearm at anyone or anything you do not intend to shoot whether or not it is loaded. This is particularly important when loading, unloading, or field stripping the firearm. ALWAYS control the direction of the firearm; if it fires accidentally, injury, death, or damage to property can be avoided.

NEVER PLACE YOUR FINGER INSIDE THE TRIGGER GUARD OR ON THE TRIGGER UNLESS YOU INTEND TO FIRE.  You should also take care to ensure that other objects do not touch the trigger.

NEVER USE ALCOHOL OR DRUGS BEFORE OR WHILE SHOOTING.  Your vision, motor skills and judgment could be dangerously impaired, making your gun handling unsafe to you and to others.  Further, do not use your firearm if you are on any medication which impairs, even slightly, your mental or physical ability.

ALWAYS SEEK A DOCTOR’S ADVICE IF YOU ARE TAKING MEDICATION. Be sure you are fit to shoot and handle your firearm safely.

NEVER SHOOT AT A HARD SURFACE SUCH AS A ROCK OR A LIQUID SURFACE SUCH AS WATER. A bullet may ricochet and travel in any direction to strike you or an object you cannot see, causing injury, death or damage to property.

NEVER DISCHARGE A FIREARM NEAR FLAMMABLE MATERIAL. Flame and sparks erupt from the firearm when discharged. They could start a fire or cause flammable liquids to explode.

ALWAYS BE AWARE OF POSSIBLE RISK FROM DROPPING YOUR FIREARM. Some parts of the mechanism could be damaged. You may not see the damage, but it could be severe. The firearm may discharge and cause injury, death, or damage to property. If your firearm has been dropped, have it examined by a competent gunsmith before using it again.

ALWAYS KEEP AND CARRY YOUR FIREARM EMPTY WITH THE HAMMER IN THE “SAFE” POSITION except when you intend to shoot, so that your firearm cannot be fired when you do not intend to fire it.

NEVER CROSS OBSTACLES SUCH AS FENCES OR STREAMS WITH A LOADED FIREARM. Always make certain your firearm is unloaded before crossing a fence, climbing a tree, jumping a ditch or approaching other obstacles.

NEVER TRANSPORT A LOADED FIREARM. Keep all firearms unloaded during transport, even when stored in a holster, gun case, scabbard or other container.

NEVER WALK, CLIMB, OR FOLLOW A COMPANION WITH YOUR FIREARM COCKED AND READY TO FIRE. When hunting, hold your firearm so that you can always control the direction of the muzzle.

NEVER LEAVE A LOADED FIREARM UNATTENDED. Someone, especially a child, may fire it and cause injury, death, or damage to property.

ALWAYS INSTRUCT CHILDREN AND NON SHOOTERS TO RESPECT FIREARMS. If you teach your children to shoot or get them trained by a qualified instructor, be certain they know how to use the firearm properly and always supervise them closely. Always stress safety so that your children or others will not fire a rifle when or where it is unsafe to do so.

Terminology & Descriptions

Congratulations on your purchase of your Henry Lever Action (H001 models).

The Henry Lever Action is a classic Western-style lever action rifle, and one of the most popular .22 rifles. It features an attractive American walnut stock, smooth action, side ejection, and a 3/8″ grooved receiver for mounting a scope.

The Henry Lever Carbine .22 rifle features a large loop lever that is perfect for individuals with larger hands or when wearing gloves in cold weather. It has a compact overall length of 34″ and a 16 1/8″ barrel.  Calibers include .22 S/L/LR, .22 Magnum, .17HMR.

The Henry Lever Action Garden Gun .22LR Shotshell features a smooth bore round barrel with a Black Ash straight grip stock.

HENRY Lever action  .22 S/L/LR / .22LR / .22MAG / .17HMR

Specifications

H012G Side View

Action Type
Lever Action
Caliber
.44 Magnum /.44 Spl – H012G, H012GAW, H012GCC, H012GL, H012GR
.45 Colt – H012GC, H012GCAW, H012GCCC, H012GCL, H012GCR
.357 Magnum/.38 Spl – H012GM, H012GMAW, H012GMCC, H012GML, H012GMR, H012GMRCC, H012GRCC
Capacity
Standard – 10 rounds
Carbine – 7 rounds
Barrel Length
Standard – 20″
Carbine – 16.5″
Barrel Type
Round Blued Steel
– H012G, H012GC, H012GCL, H012GCR, H012GL, H012GM, H012GML, H012GMR, H012GR
Round Hard Chrome Plated
– H012GAW, H012GCAW, H012GMAW
Octagon Blued Steel
– H012GCC, H012GCCC, H012GMCC, H012GMRCC, H012GRCC
Rate of Twist
.44 Magnum/.44 Spl – 1:20
.45 Colt and .357 Magnum/.38 Spl
– 1:16
Overall Length
Standard – 37.5″
Carbine – 34″
Weight
6.59 – 7.84 lbs.
Receiver Material
Steel
Receiver Finish
Blued Steel
– H012G, H012GC, H012GCL, H012GCR, H012GL, H012GM, H012GML, H012GMR, H012GR
Industrial Hard Chrome Satin
– H012GAW, H012GCAW, H012GMAW
Color Case Hardened Steel
– H012GCC, H012GCCC, H012GMCC, H012GMRCC, H012GRCC
Rear Sight
Fully Adjustable Semi-Buckhorn w/ Diamond Insert
Front Sight
Brass Bead
Scopeability
Drilled and Tapped
Scope Mount Type
BB-RSM
Stock Material
American Walnut
(all models except models listed below)
Stained Hardwood
– H012GAW, H012GCAW, H012GMAW
Stock Style
Checkered Straight Grip
(all models except models listed below)
Straight Grip
– H012GAW, H012GCAW, H012GMAW
Buttplate/pad
Black Solid Rubber Recoil Pad
Length of Pull
14″
Safety
Transfer Bar
Handing
L/R
Best Uses
Target/Hunting/Large Game
Embellishments/
Extras
Swivel Studs, Side gate

Ammunition

Your Henry Lever Action Side-Gate uses a tubular magazine and side feed loading gate feature. Read the rollmark on the side of the barrel to identify the caliber.

.357 Magnum/.38 Spl – 10 rounds, Carbine – 7 rounds
.357 Magnum is designed with .357 Magnum cartridges in mind. While you can use .38SPL loads, you must ensure they are 158GR with an overall length that closely mimics the .357 Magnum cartridge. Due to the shoulder location on the carrier, the gun will not feed: 110GR,125GR, 130GR, etc. .38 special loads reliably.
.44 Magnum – 10 rounds, Carbine – 7 rounds
Use a .44 Magnum cartridge. The .44 S&W Special cartridge can also be fired.
.45 Colt – 10 rounds, Carbine – 7 rounds
The .45 Colt is chambered for the .45 Colt cartridge (not .45ACP).

Ammunition Selection

ALWAYS USE THE CORRECT AMMUNITION FOR YOUR PARTICULAR FIREARM.

Henry Repeating Arms Firearms are designed to function with a variety of brands and types of factory manufactured ammunition in the appropriate caliber, but not all ammunition produces the same result. Be sure the only ammunition you carry correctly matches the gauge or caliber you are shooting. Never use non-standard, reloaded, or “hand-loaded” ammunition which has not been subjected to internal ballistic pressure testing. Henry RAC recommends that after you read and understand this manual, you go to the range and fire different ammunition which is appropriate to the caliber of your firearm. Once you find the ammunition which functions best, keep using it.

Range and Shooting Cautions

ALWAYS DESIGNATE A KNOWLEDGEABLE AND RESPONSIBLE PERSON TO BE IN CHARGE TO MAINTAIN SAFETY CONTROL WHEN A GROUP IS FIRING ON A RANGE. Obey their commands so that discipline is maintained to reduce the possibility of accidents.

ALWAYS CARRY YOUR FIREARM EMPTY WITH THE ACTION OPEN WHILE ON A RANGE until preparing to fire and keep it pointing towards the backstop when loading, firing, and unloading to eliminate the risk of injury, death or damage to property.

ALWAYS KEEP THE HAMMER IN THE uncocked POSITION UNTIL YOU ARE READY TO FIRE. This will minimize the risk of an accidental discharge.

ALWAYS WEAR EYE AND EAR PROTECTION SPECIFIED FOR USE WITH FIREARMS. Flying particles could damage eyes and cause blindness.  Without ear protection, the noise of even one shot from your rifle and from other guns close to you could leave a “ringing” in the ears for some time after firing and the cumulative long term effect could be permanent hearing loss.  Make sure others in the vicinity of where you are shooting are doing so as well.

ALWAYS KEEP CLEAR AND KEEP OTHERS CLEAR OF THE EJECTION PORT. Spent shells are ejected with enough force to cause injury. The ejection port must also be unobstructed by your hand to insure safe ejection of spent rounds. Never place fingers in ejection port – they could be burned by hot metal or injured by the bolt moving forward.

NEVER PUT YOUR FINGER INSIDE THE TRIGGER GUARD UNTIL YOU ARE AIMING AT A TARGET AND READY TO SHOOT. This will prevent you from firing the firearm when it is pointing in an unsafe direction.

NEVER JOKE AROUND OR ENGAGE IN “HORSEPLAY” WHILE HANDLING YOUR FIREARM. Doing so could cause an accidental discharge.

Operating Instructions

Transfer Bar Safety

This firearm is designed with an ultra-safe patented Transfer Bar Safety Mechanism. This safety system prevents the gun from being fired under all circumstances, except when the hammer is fully cocked and the trigger is pulled. If the hammer is fully cocked and the trigger is pulled, the gun would fire as normal. However, if the hammer is fully cocked and is accidentally dislodged by some other means other than the trigger being pulled, the gun will not fire. If the hammer is in the process of being cocked and is accidentally released and dropped into the fired down position, before it is fully cocked, the gun will not fire. This rifle can be safely carried fully loaded with the hammer in the fired down resting position. Please note that this rifle does not have a half cock safety position nor a crossbolt safety. If you do not have a full understanding of how the safety system works, please call us immediately at 201-858-4400 and ask for technical assistance.

Maintenance Before Use

Before using your firearm for the first time, it should be cleaned. (See the cleaning instructions.) Your firearm was treated at the factory with either a preservative or oil to protect it against corrosion during shipping and storage. Preservative and oil should be wiped from the bore, chamber and exposed areas using a clean swab or patch before using the firearm.

Purchase cleaning supplies that are specifically designated for your type and caliber of firearm. Many suppliers offer these in kit form for your convenience. Follow the instructions provided. Whenever your firearm has been exposed to sand, dust, extreme humidity, water or other adverse conditions, it should be cleaned and lubricated.

How to Load Your Henry Rifle

The Side-Gate can be single loaded. To load the chamber directly, first open the action by pushing the lever down.
WARNING! The firearm is now loaded with a cartridge in the chamber.
1) To Load the Magazine:
With the hammer down and the chamber empty, close the bolt by pulling the lever fully rearward. Insert a cartridge, bullet end first, by pushing the loading gate with the nose of the cartridge.
NOTE: Always check the cartridge for the correct designation before loading the firearm. Match the ammunition head stamp to the barrel markings.

2) To Load the Magazine Tube:
This firearm also uses a tube feed brass inner magazine tube to hold cartridges. Cartridges are loaded into the cutout in the blued outer magazine tube located underneath the barrel. Important – when loading the action must be closed with the hammer in the uncocked position (fired down position). Rotate the inner magazine tube to disengage. Pull the inner magazine tube out until the follower (the orange part at the end of the inner magazine tube) clears the loading port in the outer magazine tube. You can either remove the brass inner magazine tube completely or keep it positioned in the outer magazine tube just past the loading port. With the muzzle pointed upward, insert the rimmed end of the cartridges into the loading port in the outer magazine tube and allow them to slide down towards the action. Do not exceed the capacity of the magazine. Next, push the inner magazine tube back down into position, and lock it into place. The rifle is now ready for operation.

How to Operate

The rifle will be ready to fire by moving the hammer to the cocked position and pulling the trigger. If you are not ready to fire, place your thumb on the hammer and disengage the hammer by pulling the trigger slightly rearward. Immediately release the trigger while still holding the hammer and bring the hammer into the fired down position. If you do not fire all the cartridges in the magazine, be sure to put the hammer in the safe position until you are ready to shoot again.

UNTIL A VISUAL CHECK HAS BEEN MADE, YOU SHOULD ASSUME THAT A LIVE ROUND REMAINS IN THE CHAMBER.

How to Unload The Magazine and Chamber

To unload the magazine and chamber, the hammer should be resting in the fired down position. With the rifle pointing upward, withdraw the inner magazine tube. Tip the gun downward, allowing cartridges to slide out into a container. Replace the inner magazine tube. Open the action again, by cycling the lever, to make certain that there are no cartridges in the chamber. Cycle the action multiple times to insure that no live rounds remain in the chamber.

NOTE: The lever must be completely closed and then fully opened to insure proper feeding and ejecting of all the cartridges.

Scope Mount Installation

To install a scope mount, first check to see that the rifle is unloaded, then remove the filler screws on top of the receiver. Once the filler screws are removed, use the screws that come with your scope mount kit to attach the mount.

Sights and Sight Adjustments

Your Henry Side-Gate Lever Action Rifle is equipped with a Fully Adjustable Semi-Buckhorn rear sight. The rear
sight is adjustable for elevation (shooting high and low) and for windage (shooting left and right).

High or Low (Elevation Adjustment)

In order to shoot higher, you need to raise the rear sight. In order to shoot lower, you need to lower the rear sight. In order to raise or lower the rear sight, you need to grab the “ears” of the rear sight, and lift it up, in order to move the rear sight elevator, which sits below the ears. Your rifle can be adjusted to shoot higher by moving the rear sight elevator backward by one or more notches.
In order to shoot higher, the rear sight elevator should be moved forward. In addition, the rear sight contains a white diamond insert for fine-tuning height adjustment. This part is held in place by a screw. If you want to shoot higher, raise the insert. If you want to shoot lower, then lower the insert. Loosen the screw to the right of the white diamond, raise or lower as needed to correct elevation, then re-tighten the screw.

Left or Right (Windage Adjustment)

To adjust your for windage (left/right), we suggest that you move the rear sight to the left or right as desired. The rear sight sits in a dovetail slot cutout in the barrel. Current models will have a screw on the front of the rear sight assembly. This screw must first be loosened, prior to attempting adjustment.
To adjust your rifle for windage use a plastic mallet, or a hammer and a brass wedge to tap it in the direction you want your shots to hit. For example: if you are shooting to the left, you need to tap the sight over to the right to correct the point of impact. Conversely, if you are shooting to the right then you will need to tap the rear sight over to the left.

Malfunction and Troubleshooting

NEVER USE YOUR FIREARM IF IT FAILS TO FUNCTION PROPERLY, AND NEVER FORCE A JAMMED ACTION. Forcing the action could make the round explode, causing serious injury, possible death, or severe damage to your firearm or other property.

FAILURE TO FIRE. A misfire occurs when the firing pin strikes the primer and it does not fire.  IF THE FIREARM FAILS TO FIRE DO NOT PUT IT DOWN OR OPEN THE ACTION. ALWAYS HOLD THE FIREARM, KEEPING IT POINTED IN A SAFE DIRECTION AND WAIT 30 SECONDS. IF A HANGFIRE (SLOW IGNITION) HAS OCCURRED, THE ROUND WILL FIRE WITHIN 30 SECONDS.

If the round does not fire, remove the ammunition, eject the round and examine the shell. If the firing pin indent on the primer is light or non-existent, have the firearm examined by a competent gunsmith before firing again. If the firing pin indent on the primer appears normal (in comparison with similar previously fired rounds) assume you have faulty ammunition.  Segregate the misfired round from other live ammunition and empty cases, reload, and carry on firing.

FAILURE TO EXTRACT (FTE). This is when the firearm discharges the round and fails to extract the spent round from the chamber. This could happen because of a bad extractor or bad/damaged casings.

FAILURE TO FEED (FTF). This is simply when the firearm fails to feed another round into the chamber. Put the lever in the open position and clear the ejection port.

Note: The ejection port should face the ground; this will allow the round to easily fall out (gravity is your friend here). This will work for both left and right handed shooters.

Cleaning, Storage and Maintenance

Cleaning Safety Precautions

WARNING: BEFORE PERFORMING CLEANING PROCEDURES, MAKE SURE THE HAMMER IS IN THE FIRED-DOWN POSITION, WHICH ALLOWS YOUR SAFETY TO FUNCTION AS DESIGNED. OPEN THE ACTION AND MAKE CERTAIN YOUR FIREARM IS COMPLETELY UNLOADED. KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

KEEP ALL AMMUNITION AWAY FROM THE CLEANING AREA. NEVER TEST THE MECHANICAL FUNCTION OF YOUR RIFLE WITH LIVE AMMUNITION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

NOTICE! It is very important that the bore of your rifle be cleaned thoroughly and promptly after shooting. Do not leave discharged (empty) cases in the chambers for any length of time, as the chemical composition of many cartridges contain moisture which can “sweat” out of the shell and onto the chambers’ surfaces, and possibly cause corrosion and rust.

How to Clean

Regular cleaning is important in order for your gun to operate efficiently and safely. Taking proper care of it will also maintain its value and extend its life.

In order to clean it, we suggest that you first open the action by cycling the lever down/forward. Use a brand name cleaning kit and follow the manufacturers instructions.

NOTE: Use a brand name cleaning kit and clean the bore from the breech end. Then clean the bolt and oil it before replacing. To reassemble, simply do the reverse.

Maintenance Before Storage

When storing your firearm, do not encase it in anything that will attract or hold moisture, for example, leather or heavy cloth. Also, do not store firearms with a plug inserted in the barrel because this can be a contributing factor to moisture accumulation.

If your firearm is to be stored for an extended period, the bore, chamber and internal surfaces should be oiled with a high-quality lubricating oil or preservative intended for firearms. The external parts; receiver, bolt and barrel should be coated with an anti-rust oil.

Before using your firearm again, be sure to clean it. Every time you clean your firearm, check it for signs of wear. If wear is noted, do not use the firearm, have it checked by a qualified gunsmith.

Make sure your firearm is in good mechanical condition before firing it. Periodically have your firearm checked for signs of erosion, cracking, or wear by the factory or a factory certified gunsmith.

Storage Safety and Precautions

NEVER LOCK A LOADED FIREARM AND NEVER LOAD A LOCKED FIREARM!

ALWAYS CHECK TO MAKE SURE YOUR FIREARM IS NOT LOADED BEFORE CLEANING, STORING, TRANSPORTING IT, LAYING IT DOWN, OR HANDING IT TO ANOTHER PERSON so that it cannot be fired when it is unsafe to do so.

ALWAYS KEEP AND STORE YOUR FIREARM AND AMMUNITION IN SEPARATE, LOCKED LOCATIONS, OUT OF REACH AND SIGHT OF CHILDREN AND UNTRAINED PERSONS. Safe and secure storage of your firearm and ammunition are your responsibility.

NEVER LEAVE THE KEY TO THE LOCK FOR YOUR FIREARM WITH THE STORED FIREARM!

NEVER ASSUME THAT A “HIDING” PLACE IS A SECURE STORAGE METHOD.  Others may be aware of your storage location or come upon it by chance. It is your personal responsibility to use common sense when storing your firearm and ammunition and to always make sure they are not accessible to children or other unauthorized persons.

NOTE: Do not store your firearm in an air-tight container, and do not seal or attempt to seal the barrel to exclude dust, as the internal steel surface is more likely to rust or corrode by doing this.

BEWARE OF BARREL OBSTRUCTIONS. Be sure the barrel is clear of obstructions before shooting. Mud, water, snow or other objects may inadvertently lodge in the barrel bore. A small obstruction can cause a dangerous increase in pressure and may damage your firearm and cause injury to yourself and others.

BEFORE CHECKING FOR A BARREL OBSTRUCTION, BE CERTAIN YOUR FIREARM IS COMPLETELY UNLOADED. After assuring yourself that the firearm is completely unloaded, open the action and look through the barrel to be sure it is clear of obstructions. If an obstruction is seen, no matter how small it may be, clean the bore with a cleaning cord or a patch as described in the CLEANING section of this owner’s manual.

BE SURE ALL ACCESSORIES, SUCH AS SLINGS, SCOPES AND OTHER ACCESSORIES ARE COMPATIBLE WITH YOUR PARTICULAR FIREARM AND THAT THE ACCESSORIES DO NOT INTERFERE WITH ITS SAFE OPERATION.

It is your responsibility to understand and follow all of the instructions in the safety manual that accompanied your firearm, as well as those which may be supplied with your ammunition and any accessory.

NEVER DISASSEMBLE YOUR FIREARM BEYOND THE FIELD STRIPPING PROCEDURE OUTLINED IN THIS MANUAL. Improper disassembly or reassembly of your firearm may be dangerous and can lead to serious injury or death.

NEVER MANIPULATE, ADJUST OR CHANGE ANY OF THE INTERNAL COMPONENTS OF YOUR FIREARM UNLESS SPECIFICALLY INSTRUCTED TO DO SO IN THIS MANUAL.  Improper manipulation of any other internal component may affect the safety and reliability of your firearm and may cause serious injury or death.

NEVER ALLOW ANY ALTERATION OR REPLACEMENT OF PARTS IN YOUR FIREARM UNLESS PERFORMED BY A QUALIFIED GUNSMITH USING AUTHORIZED PARTS. If you do otherwise, improper functioning of your firearm may occur and serious injury or death and damage to property may result.

Parts

An illustration and list of part names are included in this manual. Please note that not all parts are available for sale. Those parts which are available should be installed by a licensed gunsmith. When ordering parts, please give part name and part number.

Important: If you make unauthorized adjustments or use unauthorized parts, Henry Repeating Arms Company will not assume responsibility for the proper functioning of the firearm.

This gun is manufactured to perform properly with the original parts as designed. It is your duty to make sure any parts you buy are installed correctly and that neither replacements nor originals are altered or changed. This is why we say take it to a licensed gunsmith station. Your gun is a complex tool with many parts that must relate correctly to other parts. Putting a gun together wrong or with modified parts can result in a damaged gun, danger, and injury or death to you and others through malfunction. Always let a qualified gunsmith work on your gun and check any work you think was not performed by a gunsmith.

List of Parts

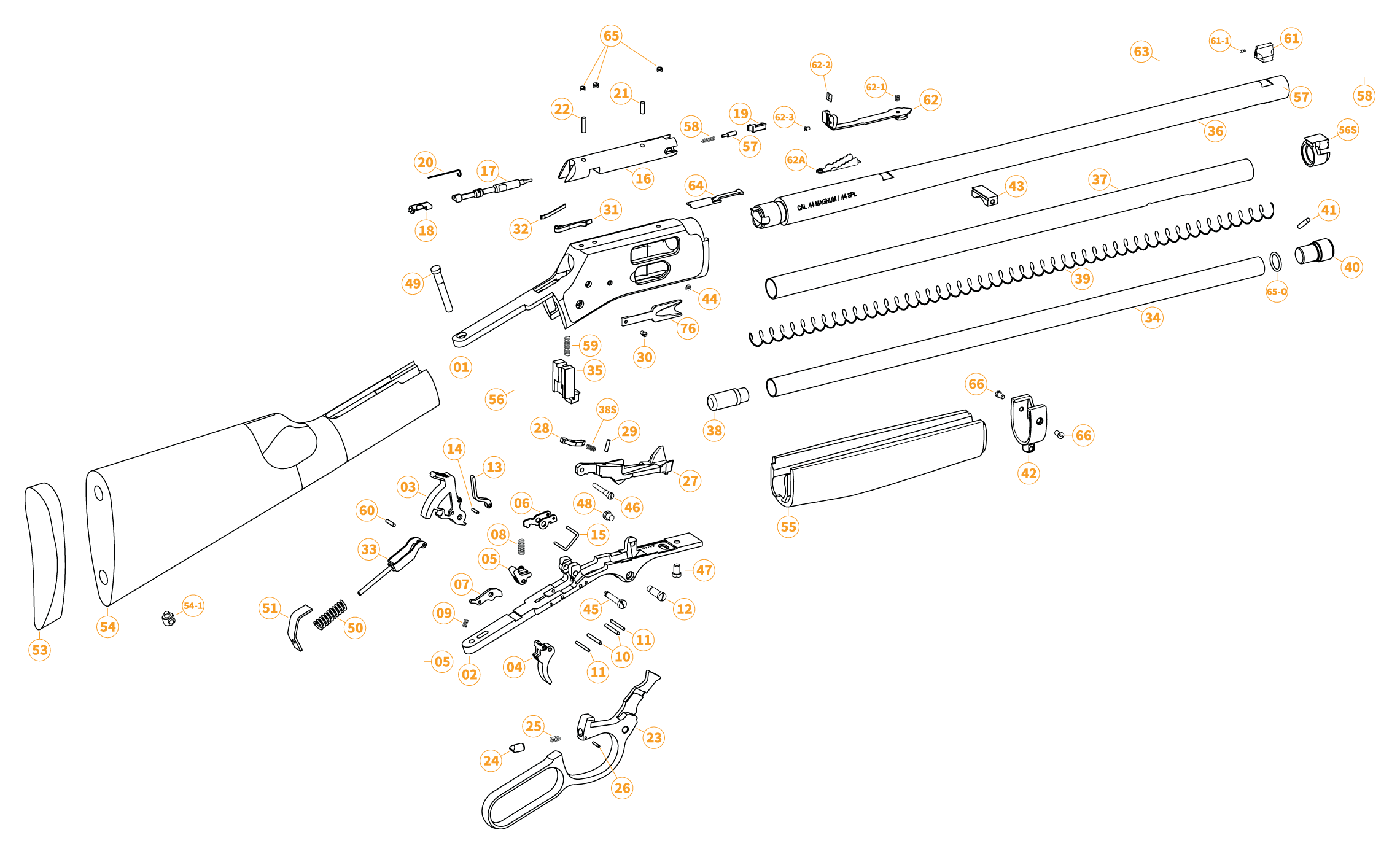

H012G Exploded Parts

01
Receiver

02
Trigger Guard Plate

03
Hammer

04
Trigger

05
Sear

06
Rocker

07
Trigger Lock

08
Sear/Rocker Spring

09
Trigger Lock Spring

10
Sear/Trigger Spring

11
Lever Detent/Trigger Lock Pin

12
Lever Screw

13
Transfer bar

14
Transfer Bar Pin

15
Trigger/Rocker Link

16
Bolt

17
Firing Pin-Front

18
Firing Pin-Rear

19
Extractor

20
Firing Pin Spring

21
Firing Pin Ret. Pin-Front

22
Firing Pin Ret. Pin-Rear

23
Lever

24
Lever Plunger

25
Lever Plunger Spring

26
Lever Plunger Pin

27
Carrier

28
Carrier Dog

29
Carrier Dog Pin

30
Screw Loading Gate

31
Ejector

32
Ejector Spring

33
Mainspring Yoke Asm

34
Inner Mag. Tube

35
Locking Bolt

36
Barrel

37
Outer Mag. Tube

38
Follower

38S
Carrier Dog Spring

39
Inner Mag. Tube Spring

40
Mag. Tube Knob

41
Mag. Tube Knob Pin

42
Forearm Cap

43
Support Forearm Cap

44
Outer Mag Tube Set Screw

45
Hammer Screw

46
Carrier Screw

47
Trig. Guard Plate Screw

48
Trig. Guard Plate Support Screw

49
Tang Screw

50
Mainspring

51
Mainspring Seat

53
Buttplate

54
Buttstock

54-1
Swivel Screw

55
Forearm

56S
Outer Mag Tube Support

57
Extractor Pin

58
Extractor Spring

59
Locking Bolt Spring

60
Mainspring Yoke Pin

61
Front Sight

61-1
Front Sight Bead

62
Rear Sight

62-1
Rear Sight Set Screw

62-2
Rear Sight Insert

62-3
Rear Sight Screw

62A
Rear Sight Elevator

64
Inner Receiver (.357 Only)

65
Dummy Screw

65-O
O-Ring

66
Forearm Cap Screw

76
Loading Gate

Servicing and Repair

If you believe that your Henry firearm requires repair or adjustment, we suggest that you first contact our Customer Service by visiting the “Contact Us” page on our website, or by phone at 201.858.4400. It may be a problem that we can resolve by phone or by sending a replacement part. For international customers please visit the “Contact Us” page on our website for instructions.

In the unlikely event that your firearm requires adjustments or repair, please make certain that it is unloaded and send it to us at the following address:

HRAC
Att: Repair Dept.
107 W. Coleman Street
Rice Lake, WI 54868

Enclose an explanation of the problem in as much detail as possible. Make certain to include your complete name, address, phone number and serial number. Make sure your firearm is packaged to prevent it from being damaged. The package should be insured to protect against Loss or Theft.

Do not include “Henry Repeating Arms” in the address on the package, in order to prevent an inquisitive thief from being attracted to it by such information.

You can use the original box for return, however, you should make sure it is wrapped in a brown or other colored paper as to not indicate that the box contains a firearm.  This helps to maintain the confidentiality of your rifle to ensure it gets back to us safely.

Download PDF Manual

Click to Download

H012G Manual cover

Order a Catalog Order a Catalog
The Henry Guarantee

The Henry Guarantee

From Founder & CEO, Anthony Imperato

“When you choose to spend your hard-earned money on a Henry, you have my personal satisfaction guarantee and a lifetime warranty for the life of the product. Your 100% satisfaction is of utmost importance, and our award-winning customer service team is empowered to do whatever it takes to make sure you are happy with your Henry.”
